Two Models EB1040SS are used to rinse wine bottles after capping.

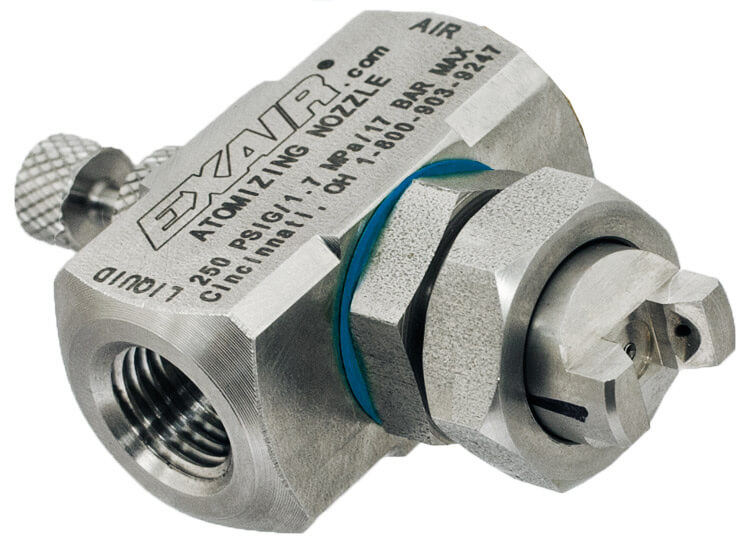

Modelle EB1010SS, EB1020SS, EB1030SS and EB1040SS – 1/4″ NPT/BSP

External mix wide angle flat fan pattern nozzles are great where a high volume of liquid is needed over a wide area such as a conveyor line. Because they are external mix, airflow and liquid flow can be controlled independently. Common applications are those which require a moderate application of liquid over a broad area, such as cooling or coating wide webs.

For pressure fed applications with independent air and liquid control.

Model: EB1010SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

Model: EB1020SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

Model: EB1030SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

Model: EB1040SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

Please click here (PDF) for droplet sizes and spray pattern.

Temperatures: External mix nozzles are designed for use up to 204°C.

Please click here (PDF) for droplet sizes and spray pattern.

External Mix Wide Angle Flat Fan Airflow Pattern
Spray Pattern
Model Pressure Width Max. Depth m
Air BAR Liquid BAR A B C
cm cm cm
EB1010SS 0.7 0.3 20.3 27.9 35.6 2.7
1.0 0.7 22.9 30.5 43.2 3.4
1.4 1.4 23.6 35.6 48.3 3.4
1.7 2.1 27.9 38.1 50.8 4.0
1.7 2.8 27.9 38.1 53.3 4.3
EB1020SS 0.6 0.3 27.9 40.6 48.3 2.4
1.0 1.4 27.9 40.6 53.3 3.4
1.4 1.4 30.5 43.2 55.9 3.7
1.7 2.1 33.0 45.7 61.0 3.7
2.1 2.8 33.0 48.3 61.0 4.3
EB1030SS 1.0 0.2 27.9 43.2 53.3 4.0
1.7 0.7 30.5 45.7 58.4 4.9
3.1 1.4 33.0 48.3 61.0 6.4
4.1 2.1 35.6 45.7 61.0 7.9
4.8 2.8 35.6 45.7 61.0 9.1
EB1040SS 2.1 0.3 33.0 48.3 61.0 5.2
3.1 1.4 35.6 50.8 66.0 5.8
4.5 1.4 38.1 53.3 68.6 7.0
5.5 1.4 38.1 55.9 71.1 7.9
6.2 2.8 40.6 55.9 71.1 7.9

Air and Liquid Volume

air pressure/ inlet pressure, l/h = liter per hour atomized liquid, l/min = standard liter per minute air consumption

0.2 BAR Liquid 0.3 BAR Liquid 0.7 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
EB1010SS 0.3 3.8 25.5 0.3 5.3 25.5 0.6 7.2 31.1
0.6 3.8 31.1 0.7 5.3 36.8 0.7 7.2 36.8
0.7 3.8 36.8 1.0 5.3 48.1 1.4 7.2 56.6
1.0 3.8 48.1 1.4 5.3 56.6 2.1 7.2 73.6
EB1020SS 0.4 9.5 28.3 0.4 12.1 28.3 0.4 16.3 28.3
0.5 9.5 31.1 0.6 12.1 31.1 0.6 16.3 31.1
0.6 9.5 31.1 0.6 12.1 34.0 0.7 16.3 36.8
0.7 9.5 36.8 0.7 12.1 36.8 0.8 16.3 42.5
EB1030SS 0.6 16.7 96.3 0.7 20.8 108 1.0 28.8 136
1.0 16.7 136 1.4 20.8 167 1.7 28.8 190
1.4 16.7 167 1.7 20.8 190 2.4 28.8 238
1.7 16.7 190 2.1 20.8 215 2.8 28.8 263
EB1040SS 0.7 37.9 108 1.0 51.1 136 1.7 71.2 190
1.0 37.9 136 1.4 51.1 167 2.1 71.2 215
1.4 37.9 167 2.1 51.1 215 2.8 71.2 263
1.7 37.9 190 2.4 51.1 238 3.1 71.2 286
air pressure/ inlet pressure, l/h = liter per hour atomized liquid, l/min = standard liter per minute air consumption

1.4 BAR Liquid 2.8 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
EB1010SS 0.7 10.2 36.8 1.0 14.4 48.1
1.4 10.2 56.6 1.4 14.4 56.6
2.1 10.2 73.6 2.1 14.4 73.6
2.4 10.2 85.0 2.4 14.4 85.0
EB1020SS 0.7 22.3 36.8 1.4 28.4 56.6
0.8 22.3 42.5 1.7 28.4 65.1
1.0 22.3 48.1 2.1 28.4 74.0
1.4 22.3 56.6 2.4 28.4 85.0
EB1030SS 2.4 41.6 238 3.4 53.0 311
3.1 41.6 286 4.5 53.0 348
3.8 41.6 331 5.9 53.0 445
4.1 41.6 340 6.5 53.0 476
EB1040SS 3.1 104 286 5.2 117 388
3.4 104 311 5.9 117 445
4.8 104 379 6.5 117 476
5.5 104 419 6.9 117 518

External Mix Wide Angle Flat Fan Nozzle Dimensions

» External Mix Nozzles (PDF)
