Tropffreie Innenmischende Zerstäuberdüsen Kleiner Austrittswinkel rundes Sprühbild

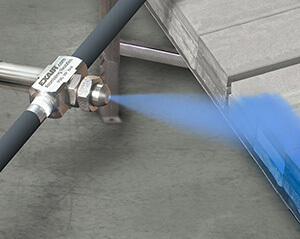

Model AN2010SS is used to mark strips of steel before they leave the mill.

Tropffreie Innenmischende Zerstäuberdüsen Kleiner Austrittswinkel rundes Sprühbild

Model AN6010SS

Model AN2010SS, AN2020SS, AN2030SS and AN2040SS – 1/4″ NPT/BSP
AN6010SS and AN6020SS – 1/2″ NPT/BSP
No Drip Internal Mix Narrow Angle Round Pattern Nozzles

No drip internal mix narrow angle round pattern nozzles are ideal for spraying a concentrated mist of liquid. They can apply a heavy coat up close or send a very fine mist over 30 feet away. They are used for precision application of lubricants during assembly. No drip internal mix narrow angle round pattern atomizing nozzles are capable of delivering the most liquid of any of our atomizing nozzles.

No Drip Internal Mix Narrow Angle Round Pattern Nozzles Model AN2010SS

Model: AN2010SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Narrow Angle Round Pattern Nozzles Model AN2020SS

Model: AN2020SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Narrow Angle Round Pattern Nozzles Model AN2030SS

Model: AN2030SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Narrow Angle Round Pattern Nozzles Model AN2040SS

Model: AN2040SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Narrow Angle Round Pattern Nozzles Model AN6010SS

Model: AN6010SS

1/2″ NPT/BSP
Material: Stainless Steel Type 303

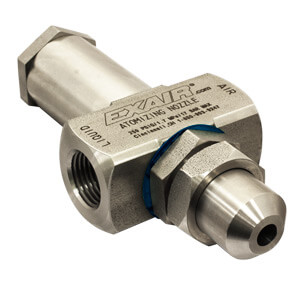

No Drip Internal Mix Narrow Angle Round Pattern Nozzles Model AN6020SS

Model: AN6020SS

1/2″ NPT/BSP
Material: Stainless Steel Type 303

Temperature: No Drip Narrow Angle Round Pattern Spray Nozzles are rated for temperatures up to 204°C.

Please click here (PDF) to view Droplet Size and Spray Angle information.

Tropffreie innenmischende Zerstäuberdüsen, kleiner Austrittswinkel, rundes Sprühbild Leistung
Spray Dimensions
Model Pressure Width Max. Depth m
Air BAR Liquid BAR A B C
cm cm cm
AN2010SS 0.8 0.7 6 8 13 1.8
1.4 1.4 7 10 15 2.4
2.3 2.1 8 11 17 2.7
2.9 2.8 9 11 17 3
4 4.1 10 13 18 3.4
AN2020SS 1.7 0.7 6 9 14 3.4
2.6 1.4 7 10 17 3.7
3.8 2.1 8 11 17 4
4.5 2.8 9 13 18 4.3
5.9 4.1 10 14 19 5.5
AN2030SS 1 0.7 7 11 17 3
1.8 1.4 8 13 18 4.9
2.8 2.1 10 14 18 5.8
3.4 2.8 10 15 20 6.7
4.8 4.1 10 15 20 7.9
AN2040SS 1 0.7 8 11 17 5.2
1.7 1.4 9 15 19 6.4
2.3 2.1 10 17 20 7.9
3 2.8 11 18 22 9.1
4.4 4.1 13 18 23 10.7
Flow Rates
l/h = Liter per Hour l/min = Standard Liter per Minute
0.7 BAR Liquid 1.4 BAR Liquid 2.1 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AN2010SS 0.7 5.3 17 1.2 6.8 25 1.7 8.7 28
0.8 4.5 20 1.5 6.1 28 2.2 7.2 37
1 4.2 23 1.7 5.7 31 2.5 6.1 42
— — — 1.8 4.9 34 2.8 4.9 48
AN2020SS 1.1 14 79 1.9 19.7 113 2.8 22.7 147
1.4 9.5 96 2.5 10.2 144 3.3 14.4 181
1.7 5.3 113 2.8 6.4 161 3.8 7.9 207
1.9 2.3 130 3 3 181 4.1 4.2 229
AN2030SS 0.8 29.5 54 1.4 48.8 71 2.1 57.2 96
1 22.7 62 1.7 37.1 85 2.6 35.6 127
1.1 16.7 74 1.9 26.5 102 2.9 26.5 144
1.2 12.5 82 2.2 15.5 125 3.2 18.9 167
AN2040SS 1 23.8 99 1.4 90.8 85 1.9 125 96
1.1 11.4 119 1.7 49.2 119 2.2 90.8 130
— — — 1.8 34.1 139 2.5 47.3 167
— — — 1.9 20.8 159 2.8 22.7 210
l/h = Liter per Hour l/min = Standard Liter per Minute
2.8 BAR Liquid 4.1 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AN2010SS 2.1 10.2 34 2.8 12.5 42
2.6 8.7 42 3.6 10.6 54
3 7.2 48 4.3 8.7 68
3.3 6.4 57 4.8 7.2 79
AN2020SS 3.3 26.5 167 4.5 37.5 198
4.5 13.6 229 5.5 25 244
5.2 5.3 277 6.2 17 286
5.5 3 289 6.9 9.1 320
AN2030SS 2.6 68.1 116 3.7 87.1 150
3.2 49.6 144 4.5 64.7 190
3.6 36.3 170 5.2 46.6 227
3.9 27.6 187 5.9 27.6 272
AN2040SS 2.2 176 79 2.9 250 76
2.8 114 144 3.4 204 122
3.2 62.5 193 4 148 187
3.4 39 232 4.8 60 289

Temperature: No Drip Narrow Angle Round Pattern Spray Nozzles are rated for temperatures up to 204°C.

Please click here (PDF) to view Droplet Size and Spray Angle information.

Tropffreie innenmischende Zerstäuberdüsen, kleiner Austrittswinkel, rundes Sprühbild Leistung
Spray Dimensions
Model Pressure Width Max. Depth
Air BAR Liquid BAR A B C
cm cm cm
AN6010SS 1.4 0.3 8.89 14.6 21.6 6.7
2.5 1.0 8.89 14.6 21.6 9.1
3.34 1.7 8.89 14.6 21.6 10.4
4.1 2.4 8.89 14.6 21.6 11.3
AN6020SS 0.7 0.3 10 15.2 22 6.1
2.2 1.7 14 19.1 25 8.2
3.0 2.4 15 22.9 27 10.7
4.4 3.8 15 22.9 27 12.8
Flow Rates
l/h = Liter per Hour l/min = Standard Liter per Minute
0.3 BAR Liquid 1.0 BAR Liquid 1.7 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AN6010SS 1.2 34.1 339.8 1.9 102.2 411 2.6 195.3 464
1.4 26.5 362.5 2.2 75.7 459 3.0 122.6 552
1.5 22.7 385.2 2.6 75.7 538 3.7 83.3 668
1.7 17.0 410.6 2.9 47.3 578 4.1 68.1 762
AN6020SS 0.7 113.6 388.0 1.2 372.4 442 1.8 601.8 498
0.8 70.4 458.8 1.4 277.1 507 2.2 374.7 671
— — — 1.5 240.7 575 2.5 283.9 810
— — — 1.7 199.8 640 2.8 218.0 935
l/h = Liter per Hour l/min = Standard Liter per Minute
2.4 BAR Liquid 3.8 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AN6010SS 3.3 286 521 — — —
4.1 139 716 — — —
5.0 82 878 — — —
5.4 64 954 — — —
AN6020SS 2.5 693 566 3.7 874.6 736
2.9 477 739 4.1 635.9 946
3.2 363 878 5.0 287.7 1337
3.6 269 1068 5.2 204.4 1453

Temperature:

No Drip Narrow Angle Round Pattern Spray Nozzles are rated for temperatures up to 204°C.
Please click here (PDF) to view Droplet Size and Spray Angle information.

Tropffreie innenmischende Zerstäuberdüsen, kleiner Austrittswinkel, rundes Sprühbild Leistung
Spray Dimensions
Model Pressure Width Max. Depth m
Air BAR Liquid BAR A B C
cm cm cm
AN9010SS 0.7 0.7 8 9 11 1.1
1.2 1.4 8 10 13 1.5
2.2 2.1 8 10 14 2.1
3.3 2.8 8 11 15 2.4
AN9020SS 0.7 0.7 5 8 10 1.5
1.4 1.4 6 9 11 2.1
2.2 2.1 6 9 11 2.1
4.8 4.1 9 11 17 3.0
AN9030SS 0.8 0.7 5 8 11 1.8
1.8 1.4 6 9 13 1.8
3.6 2.8 8 10 15 3.4
4.8 4.1 10 13 17 3.4
AN9040SS 1.1 0.7 6 8 10 3.0
2.2 1.4 8 10 14 3.4
5.5 2.8 8 10 14 4,0
6.9 4.1 9 11 15 4.6
AN9050SS 0.8 0.7 8 10 15 2.7
1.5 1.4 8 10 15 3.4
2.6 2.1 8 11 15 4.3
5.9 4.1 10 13 17 4.9

Flow Rates

l/h = Liter per Hour l/min = Standard Liter per Minute

0.7 BAR Liquid 1.4 BAR Liquid 2.1 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AN9010SS 0.7 3.7 7.1 1.0 6.9 9.1 1.7 7.5 14.7
0.8 3.0 9.1 1.2 5.7 11.0 1.9 6.4 16.7
1.0 2.3 11.3 1.5 4.8 14.7 2.2 5.2 20.1
— — — 1.8 2.8 19 2.6 3.0 26.3
AN9020SS 0.7 5.0 12.2 1.2 6.9 20.1 1.7 8.6 25.8
0.8 4.4 14.2 1.4 6.5 21.2 1.9 7.8 28.0
1.0 3.9 17.0 1.5 6.2 23.8 2.2 7.2 30.9
— — — — — — 2.8 5.9 41.0
AN9030SS 0.8 8.3 13.3 1.5 11.0 21.2 2.1 14.0 27.2
1.1 6.1 15.9 1.8 9.2 23.2 2.3 12.1 28.3
1.7 2.5 26.9 2.6 4.3 38.2 3.2 6.8 41.0
1.9 1.8 30.3 2.9 2.9 43.3 3.6 5.3 49.8
AN9040SS 1.1 9.6 71.9 1.9 25.0 103.0 2.8 29.7 132.9
1.4 11.0 82.6 2.2 21.2 112.6 3.0 26.0 141.3
1.8 13.6 101.8 3.0 9.2 146.1 4.1 10.6 182.0
2.1 15.4 115.0 3.4 5.0 167.7 4.8 4.7 220.4
AN9050SS 0.8 28.8 49.8 1.4 44.0 67.1 2.1 51.1 96.8
1.0 23.1 55.8 1.5 39.9 80.7 2.3 43.0 111.0
1.1 18.2 61.7 1.7 35.7 88.0 2.6 34.3 124.6
— — — 2.2 19.2 118.6 3.2 21.6 156.3
l/h = Liter per Hour l/min = Standard Liter per Minute
2.8 BAR Liquid 4.1 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AN9010SS 2.2 8.4 19.0 3.4 10.0 27.7
2.5 7.5 20.9 3.7 9.0 28.9
2.8 6.3 23.8 4.0 7.9 31.7
3.3 3.8 30.9 4.6 6.4 34.3
AN9020SS 2.1 10.0 29.7 2.8 12.6 37.1
2.3 9.3 31.7 3.1 11.8 39.6
2.6 8.8 34.0 3.6 10.9 45.3
3.3 7.1 43.3 4.8 8.3 62.3
AN9030SS 2.5 16.9 30.9 3.3 23.8 36.2
2.8 15.8 31.7 3.6 22.2 36.8
3.6 10.1 42.2 4.4 17.3 45.0
4.1 7.6 52.9 4.8 14.4 52.1
AN9040SS 3.3 35.3 153 4.5 45.4 190
3.8 30.9 169 5.2 41.0 214
5.5 9.6 243 6.2 30.9 256
6.2 4.8 272 6.9 23.2 280
AN9050SS 2.6 58.2 113 3.7 71.7 146
2.9 53.3 127 4.1 65.1 165
3.2 46.7 140 4.5 59.4 183
3.9 29.0 177 5.9 30.8 243

Tropffreie Innenmischende Zerstäuberdüse Kleiner Austrittswinkel, rundes Sprühbild Abmessungen
Tropffreie Innenmischende Zerstäuberdüse Kleiner Austrittswinkel, rundes Sprühbild Abmessungen
