A Model SF2020SS is used to apply a light coating of oil to prevent sockets from rusting prior to a packaging operation.
Model SF2010SS, SF2020SS and SF2030SS – 1/4″ NPT/BSP
No Drip Siphon Fed Flat Fan Pattern Atomizing Nozzles
No drip siphon fed flat fan pattern nozzles are ideal for applications where liquid pressure is not available and a thin coating is needed over a wide band. No drip siphon nozzles work best with a suction height of 36″ or less. Since these nozzles are siphon fed, the compressed airflow draws the liquid in and mixes it internally. Liquid flow is dependent both on the gravity or suction height and the airflow. These nozzles can be used for applications as washing, rinsing, coating, cooling and quenching.

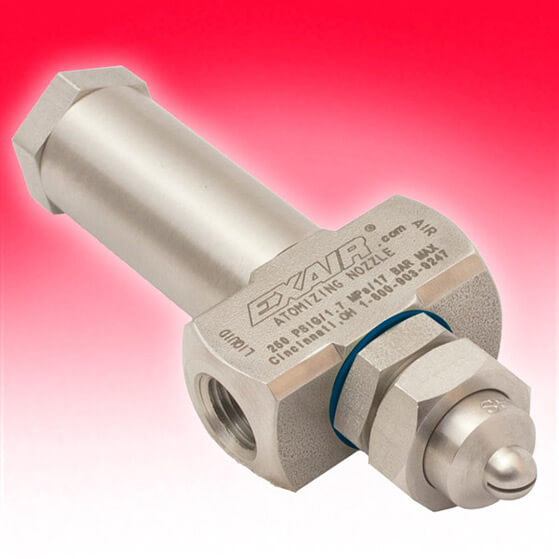

Model: SF2010SS
1/4″ NPT/BSP
Material: Type 303 Stainless Steel

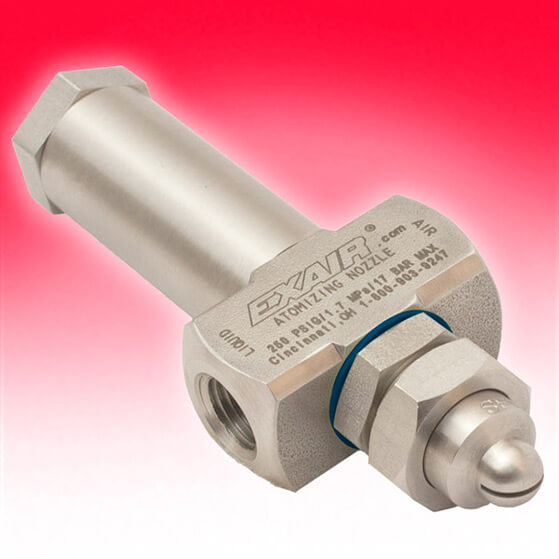

Model: SF2020SS
1/4″ NPT/BSP
Material: Type 303 Stainless Steel

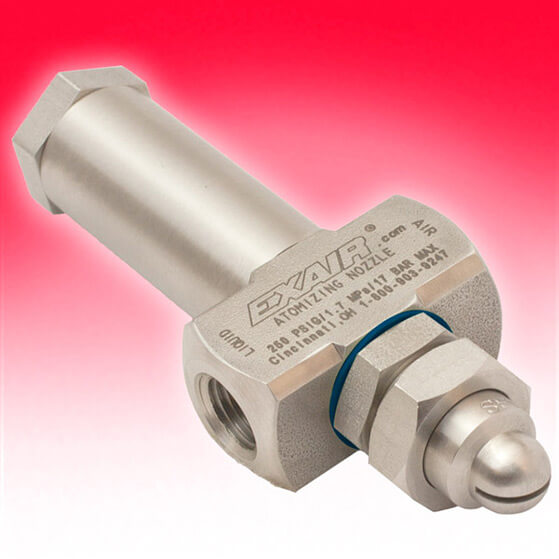

Model: SF2030SS
1/4″ NPT/BSP
Material: Type 303 Stainless Steel
Temperature:
No Drip Flat Fan Pattern Spray Nozzles are rated for temperatures up to 204°C.
Please click here (PDF) to view Droplet Size and Spray Angle information.

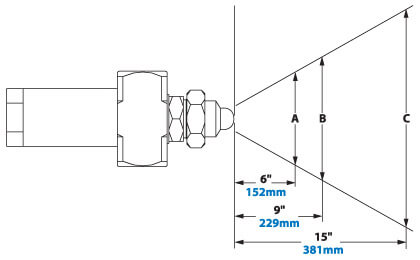

| Spray Dimensions | ||||||
|---|---|---|---|---|---|---|
| Model | Air | Width | Max. Depth m | |||
| Pressure BAR | A | B | C | |||
| cm | cm | cm | ||||
| SF2010SS | 0.7 | 23 | 28 | 33 | 1.5 | |
| 1.4 | 25 | 30 | 36 | 1.8 | ||
| 2.1 | 28 | 33 | 38 | 2.1 | ||
| SF2020SS | 1.4 | 25 | 36 | 48 | 1.8 | |
| 2.1 | 28 | 38 | 53 | 2.1 | ||
| 2.8 | 33 | 41 | 58 | 1.8 | ||
| 3.4 | 36 | 46 | 64 | 1.8 | ||
| SF2030SS | 1.4 | 23 | 28 | 38 | 2.4 | |
| 2.1 | 25 | 33 | 43 | 2.7 | ||
| 2.8 | 28 | 36 | 43 | 3.0 | ||
| 3.4 | 28 | 36 | 46 | 3.4 | ||
l/h = Liter per Hour l/min = Standard Liter per Minute
| Liquid Flow in l/h | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Air | Gravity Head | Siphon Height | ||||||||
| Model | Pressure BAR | l/min | 46cm | 30cm | 15cm | 10cm | 20cm | 30cm | 61cm | 91cm |
| SF2010SS | 0.7 | 25.5 | 1.5 | 1.1 | 1.1 | 0.8 | 0.8 | 0.8 | 0.8 | 0.4 |
| 1.4 | 36.8 | 1.5 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.8 | 0.8 | |
| 2.1 | 48.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | — | — | — | |
| SF2020SS | 1.4 | 65.1 | 4.5 | 4.2 | 3.8 | 3.4 | 3.0 | 3.0 | 2.3 | 1.9 |
| 2.1 | 82.1 | 4.2 | 4.2 | 3.8 | 3.0 | 3.0 | 3.0 | 2.3 | 1.9 | |
| 2.8 | 99.1 | 3.8 | 3.4 | 3.0 | 2.6 | 2.6 | 2.6 | 1.9 | 1.5 | |
| 3.4 | 122 | 3.0 | 2.6 | 1.9 | 1.9 | 1.5 | 1.1 | — | — | |
| SF2030SS | 1.4 | 62.3 | 6.8 | 6.1 | 5.7 | 5.3 | 5.3 | 4.9 | 4.2 | 3.8 |
| 2.1 | 79.2 | 7.2 | 6.8 | 6.8 | 6.4 | 6.4 | 6.1 | 5.3 | 4.5 | |
| 2.8 | 93.4 | 6.8 | 6.8 | 6.4 | 6.1 | 6.1 | 5.7 | 4.9 | 4.5 | |
| 3.4 | 113 | 6.1 | 5.7 | 5.3 | 5.3 | 4.9 | 4.9 | 4.2 | 3.8 | |
