Air-operated double diaphragm pumps for use in the pharmaceutical industry, in the production and processing of food and beverages, and in the cosmetic and hair therapy industry.
Suitable for pumping liquids with high viscosity and for sluggish applications, suspended particles may also be present. Pump models with max. flow rates from 17 l/min to 800 l/min are available.
Features:
- Pumps designed and manufactured in Italy
- Patented anti-lock compressed air circuit, low maintenance
- Dry running is supported
- Operation with non-lubricated air
- Self-priming without manual priming device
- Adjustable operating speed
- Transfer of pumped media in heavy duty applications
- Suspended installation possible
- Diaphragm available with Long Life profile for increased durability and longer service life
- Suitable for continuous operation
Debem Foodboxer Models:
Foodboxer 15 Max Flow Rate 17 l/min
Air-operated double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: G 4″ clamp connection, air connection: 3/4″ clamp, 8 bar supply air pressure. Maximum diameter of solids 0.5 mm.
Foodboxer 15: Versions and technical details
Foodboxer 30 Max Flow Rate 35 l/min
Air-operated double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: 3/4″ – 1“ clamp connection, air connection: G 1/4″ f, 8 bar supply air pressure. Maximum diameter of solids 2 mm.
Foodboxer 30: Versions and technical details
Foodboxer 50 Max Flow Rate 60 l/min
Compressed air double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: 3/4″ clamp connection, air connection: G 3/8″ f BSPP, 8 bar supply air pressure. Maximum diameter of solids 4 mm.
Foodboxer 50: Versions and technical details
Foodboxer 81 Max Flow Rate 110 l/min
Compressed air double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: 1 1/2″ clamp connection, air connection: G 3/8″ f, 8 bar supply air pressure. Maximum diameter of solids 4 mm.
Foodboxer 81: Versions and technical details
Foodboxer 100 Max Flow Rate 160 l/min
Pneumatic double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: G 1 1/2″ clamp connection, air connection: G 3/8″ f BSPP, 8 bar supply air pressure. Maximum diameter of solids 4 mm.
Foodboxer 100: Versions and technical details
Foodboxer 150 Max Flow Rate 220 l/min
Pneumatic double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: 1 1/4″ clamp connection, air connection: G 1/2″ f BSPP, 8 bar supply air pressure. Maximum diameter of solids 5 mm.
Foodboxer 150: Versions and technical details
Foodboxer 252 Max Flow Rate 340 l/min
Pneumatic double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: 2″ clamp connection, air connection: G 1/2″ f, 8 bar supply air pressure. Maximum diameter of solids 6 mm.
Foodboxer 252: Versions and technical details
Foodboxer 502 Max Flow Rate 600 l/min
Air-operated double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: 2 1/2″ clamp connection, air connection: G 1/2″ f BSPP, 8 bar supply air pressure. Maximum diameter of solids 8 mm.
Foodboxer 502: Versions and technical details
Foodboxer 503 Max Flow Rate 800 l/min
Air-operated double diaphragm pumps in electropolished AISI 316L and PTFE FDA, each also available with ATEX protection. Suction and pressure connections: 4″ clamp connection, air connection: G 3/4″ f, 8 bar supply air pressure. Maximum diameter of solids 10 mm.
Foodboxer 503: Versions and technical details

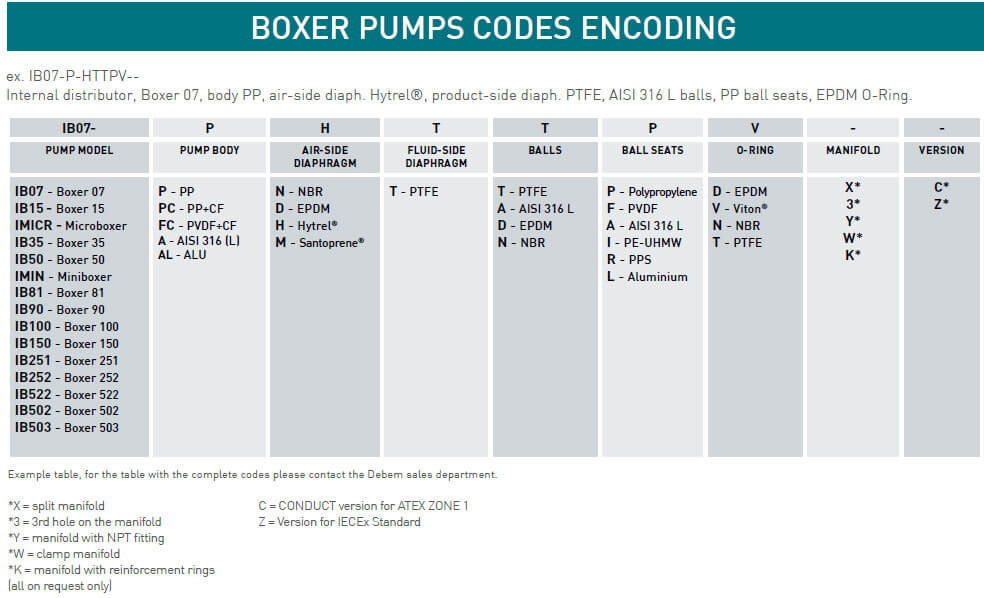

When ordering, please state the code according to the following code encryption table.
