High Velocity Air Jet

Model 6013 and 6013SS

Provides maximum thrust with a confined, directed airstream. It is the best choice for part ejection, chip removal, and part drying.

Shim Sets

Shims can be used to change the gap on the Model 6013 High Velocity Air Jet. Changing shims will alter air consumption, force, flow and vacuum capability. Order Model 6313 Air Jet Shim Set.

OSHA

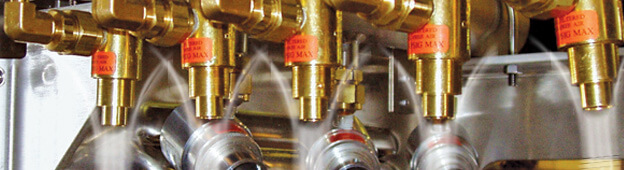

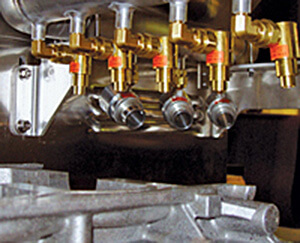

Dry Engine Casting with High Velocity Air Jets

A combination of Model 6013
High Velocity Air Jets and Model 6042
Adjustable Air Amplifiers dry this engine
casting.

BSP Threads Available – Contact Us.

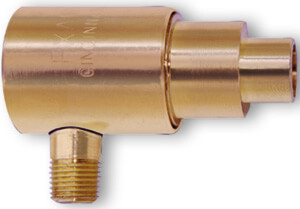

Air Jet Modell 6013

Model 6013 – 1/8″ NPT male
Material: Brass
Max Temp: 400oF (204oC)

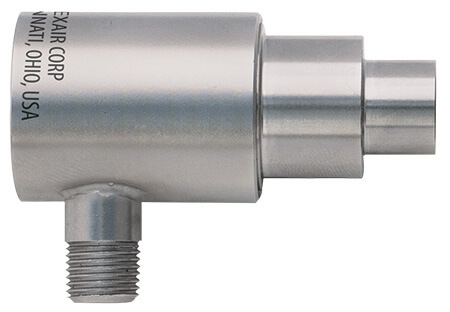

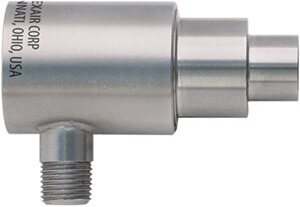

Modell 6013SS

Model 6013SS – 1/8″ NPT male
Material: Type 303 Stainless Steel
Max Temp: 400oF (204oC)

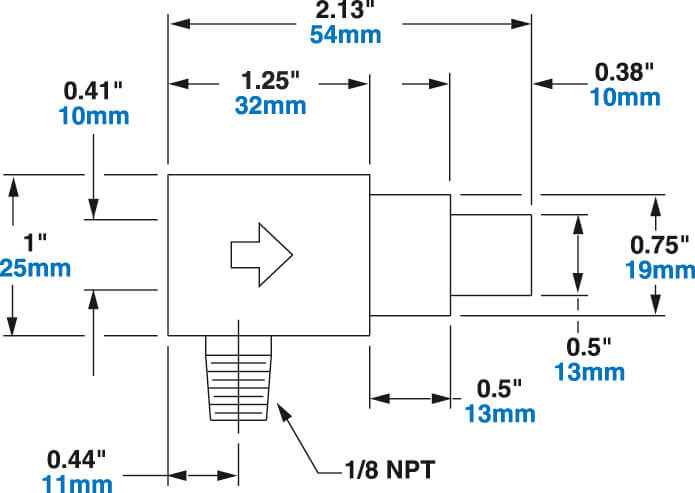

Dimensions

Performance

Air Consumption Force* Sound Level
SCFM SLPM Ounces Grams dBA
22 622 20 567 82

*Force measured at 12″ (305mm) from target with .015″ (.38mm) shim installed. Sound level measured at 3′ (914mm). All measurements taken at 80 PSIG (5.5 BAR).

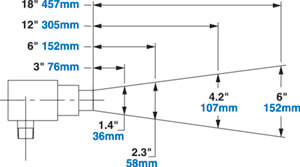

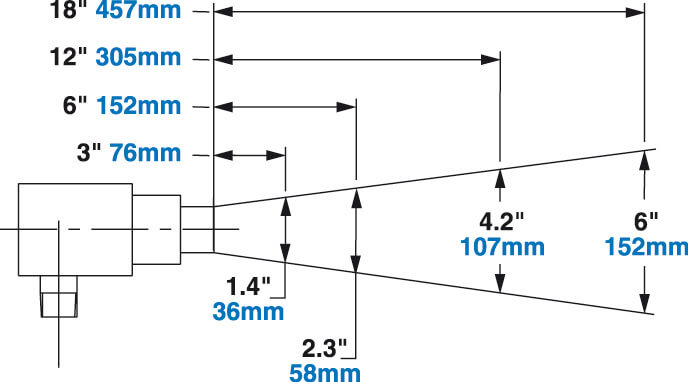

Airflow Pattern

JET 6013 Luftströmungsfeld

Shims

The Model 6313 Air Jet Shim Set for the High Velocity Air Jet (shown) includes a .006″ (0.15mm) and a .009″ (0.23mm) thick shim. A .015″ (0.38mm) shim comes installed with the Model 6013 Air Jet.

Modell 6313 Shim Set
