Adjustable Air Jet
Model 6019 and 6019SS

The Adustable Air Jet is an adjustable version of the Model 6013 High Velocity Air Jet. Airflow and thrust are easily adjusted using the micrometer gap indicator. It is available in brass and Type 303 Stainless Steel.
It is easy to build a system that´s suited to your application requirements.

OSHA
Air Jet 6019 Anwendung

A combination of Model 6013 High
Velocity Air Jets and Model 6042 Adjustable
Air Amplifiers dry this engine casting.

BSP Threads Available – Contact Us.

Air Jet Modell 6019

Model 6019 – 1/8 NPT male
Material: Brass

Air Jet Modell 6019SS

Model 6019SS – 1/8 NPT male
Material: Type 303 Stainless Steel

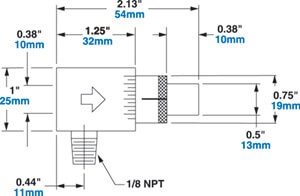

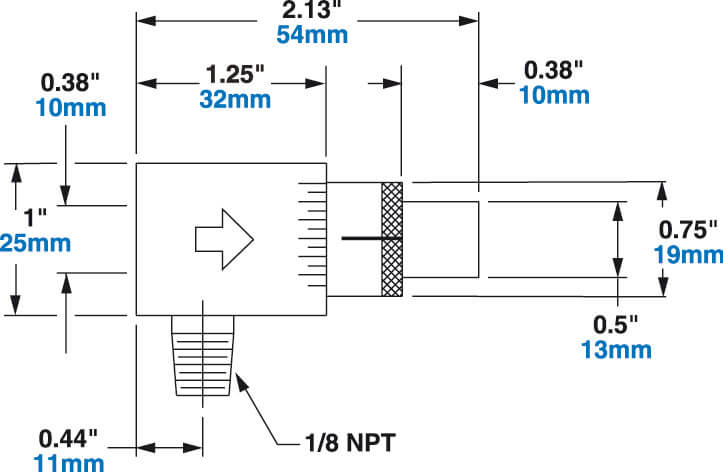

Dimensions

Performance

Air Consumption Force* Sound Level
SCFM SLPM Ounces Grams dBA
18 509 16 453 83

*Force measured at 12″ (305mm) from target with a .006″ (.15mm) setting. Sound level is measured at 3′ (914mm). All measurements taken at 80 PSIG (5.5 BAR).

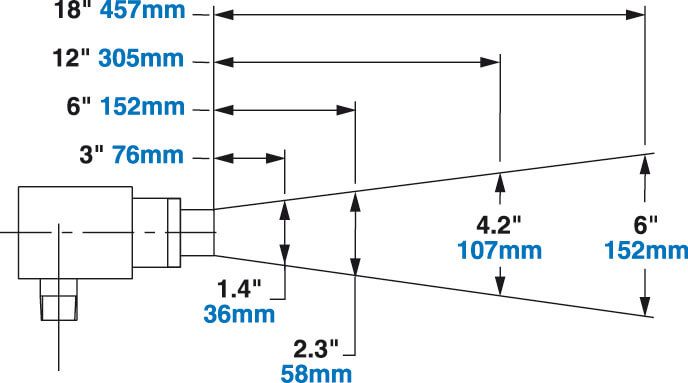

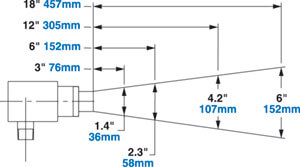

Airflow Pattern

Adjustable Air Jet 6019 Luftströmungsfeld
