EXAIR’s 2″ High Power Flat Super Air Nozzles produce a flat 2″ (51mm) wide airstream with a strong blowing force of 2.2 pounds. The adjustable force is more than three times that of ordinary air nozzles. It uses EXAIR’s patented technology to maximize entrained airflow while reducing noise levels.

OSHA

High Power Flat Super Air Nozzle
Model HP1125

Hochleistungsflachstrahldüse Modell HP1125

Model HP1125 1/4″ NPT Female
Material: Zinc Aluminum alloy

Model HP1125SS 1/4″ NPT Female
Material: Type 316 Stainless Steel

2 inch High Power Super Air Nozzle Demonstration

Performance

Air Consumption Force* Sound Level
SCFM SLPM Ounces Grams dBA
37 1039 2.2 1134 83

*Force measured at 12″ (305mm) from target with a 0.25″ (.64mm) shim installed. Sound level measured at 3′ (914mm). All measurements taken at 80 PSIG (5.5 BAR).

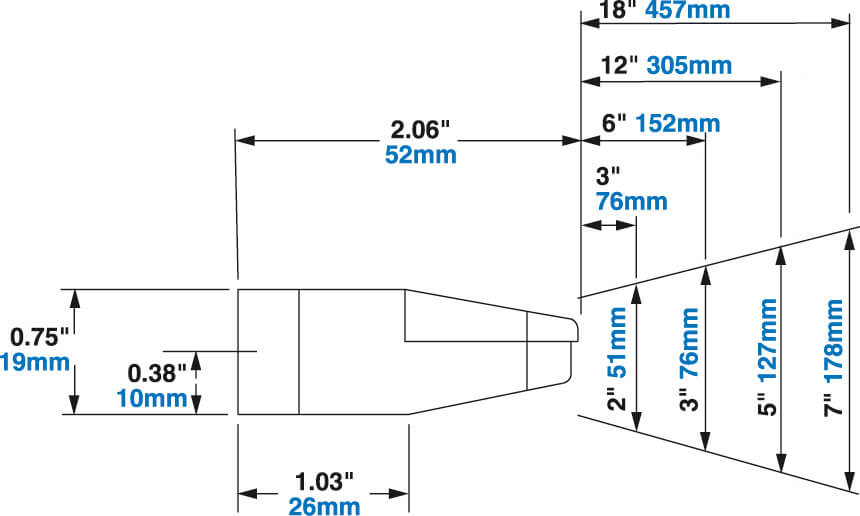

Dimensions and Airflow Pattern

Hochleistungsflachstrahldüse Modelle HP1125 Luftströmungsfeld Abmessungen
