EasySwitch™ Wet/dry vacuum cleaner

Make the seamless transition from a dry material vacuum to liquids with ease!

What is the EasySwitch Vacuum?

The EasySwitch vacuum cleaner simplifies the filter change process when switching from dry material to a liquid or vice versa. With minimal compressed air consumption, the EasySwitch is a powerful pneumatic vacuum cleaner ideal for any application – wet, dry, light and heavy.

The EasySwitch is designed to perform even the most demanding cleaning jobs in the industrial sector with ease. The EasySwitch vacuum cleaner from EPUTEC uses a standard or HEPA certified filter when vacuuming dry material. The quick and easy changeover to vacuuming wet dirt is done by releasing a latch and simply removing the filter element. The EasySwitch vacuum cleaner, which works exclusively with compressed air, is a powerful vacuum cleaner that requires no electrical power. Since the vacuum generator has no moving parts and works without electricity, there are no problems associated with the use of electric wet vacuum cleaners, such as defective parts, engine failure or personal safety.

Difference between standard & HEPA filters

Compared to the standard filter, the HEPA filter achieves a significantly higher level of filtration, meaning that much smaller and finer particles can be filtered out. The HEPA filter is particularly suitable in dusty environments, with a filtration of at least 99.7% at 0.3 microns.

Why the EasySwitch Vacuum?

The EasySwitch vacuum cleaner is a pneumatic all-purpose vacuum cleaner for both dry and wet vacuuming. The changeover from wet to dry vacuuming is very simple: When vacuuming wet, remove the folded filter and simply reinsert it directly into the open filter holder before vacuuming dry dirt. Like most of EPUTEC’s intelligent compressed air products, this compressed air powered vacuum cleaner works at a quiet 79 decibels without the need to purchase additional silencer accessories. Thanks to the quiet operation, the operator’s hearing is protected. In addition, the EasySwitch consumes less compressed air with better or equal performance compared to other competing pneumatic products. The EasySwitch also stands out for its accessories: both standard and antistatic hose, drum reel for easy transport, high-quality metal accessory and tool holders. The EasySwitch offers customers effective and adaptable cleaning methods and thus represents a comprehensive solution for industrial cleaning.

How the EasySwitch wet/dry vacuum cleaner works

The EasySwitch vacuum cleaner has a filter flap that is secured with a simple latch and allows easy filter installation and removal. No additional springs, clips or fasteners are required. A rubber handle (1) is connected to the filter latch (2). The flap can be lifted by unlocking the handle from the container lid. As soon as the flap is lifted, the filter (3) can be easily installed or removed. The filter simply extends from the filter flap opening. For installation, simply place the filter on the edge seal (4) of the filter flap opening. For operation, close the latch and secure the rubber handle (1). With the filter installed, the suction cup works with dry dirt, with the filter removed it works with wet dirt. As soon as the container is filled with liquid, the vacuum cleaner switches off automatically via a float switch.

  • Coolant
  • Chips
  • Floor Cleanup
  • Drains
  • Sawdust
  • Mold and allergen removal
  • Easy to switch from liquid to dry material
  • High performance with minimal air requirements
  • Low sound level
  • Maintenance free
  • Safe – no electricity
  • Spill free – auto safety shutoff
  • No motors to clog or wear out
  • Continuous duty
Pressure Supply Air Consumption Lift Vacuum Flow Sound level
PSIG BAR SCFM SLPM H2O mm Hg CFM LPM dBA
80 5.5 53 1,500 -168 -314 90 2,548 79
90 6.2 59 1,670 -190 -355 92 2,605 80
100 6.9 65 1,840 -210 -392 94 2,661 82

6101

55 Gallon EasySwitch Wet-Dry Vac System includes the EasySwitch vac unit, EasySwitch drum lid, standard filter, 1/2″ compressed air hose assembly, pressure gauge, 10′ of 1.5″ vacuum hose, crevice tool, 19″ straight wand, skimmer tool and dust brush. (drum not included)

6201

55 Gallon Deluxe EasySwitch Wet-Dry Vac System – same as Model 6101 and adds a drum dolly, an upgrade to 10 feet of 1.5” antistatic hose, spill recovery kit, extension wand, round dust brush, 24” and 11” crevice tool, 12″ wide floor tool and tool holder. (drum not included)

6301

55 Gallon Premium EasySwitch Wet-Dry Vac System – same as Model 6201 and adds a 55 gallon drum.

6103

55 Gallon HEPA EasySwitch Wet-Dry Vac System includes the EasySwitch vac unit, EasySwitch drum lid, HEPA Filter and Pre-Filter, 1/2″ compressed air hose assembly, pressure gauge, 10′ of 1.5″ vacuum hose, crevice tool, 19″ straight wand, skimmer tool and dust brush. (drum not included)

6203

55 Gallon HEPA EasySwitch Wet-Dry Vac System – same as Model 6103 and adds a drum dolly, an upgrade to 10 feet of 1.5” antistatic hose, spill recovery kit, extension wand, round dust brush, 24” and 11” crevice tool, 12″ wide floor tool and tool holder. (drum not included)

6303

55 Gallon Premium HEPA EasySwitch Wet-Dry Vac System – same as Model 6203 and adds a 55 gallon drum.

EasySwitch Vakuumeinheit ohne Zubehör

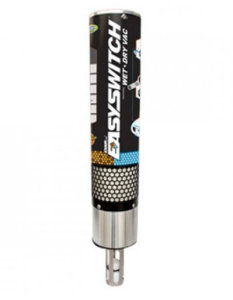

EasySwitch Vac unit: This model is the EasySwitch pump, without any accessories. This vacuum unit basically works like an airflow amplifier – also known as a venturi, and is similar to the two-way pump on the Reversible Drum Vac. However, it is larger or stronger and is only used for suction. Changing the filter on the EXAIR EasySwitch vacuum cleaner is quick and easy when it comes to switching from sucking a solid to a liquid and vice versa. Using a minimum of compressed air, the EasySwitch is a powerful pneumatic vacuum suitable for any application – wet, dry, light and heavy. The EasySwitch is designed to tackle the toughest industrial cleaning tasks with ease. The wet and dry vacuum cleaner fits any 205 liter barrel.

Model Description
902100 Default filter for EasySwitch Vac
902200 HEPA-Filter
902146 Pre-Filter for EasySwitch Vac
902176 Replacement muffler material
902031 Replacement drum lid gasket
902032 Replacement vacuum unit gasket
902184 Replacement filter port gasket
902187 Magnetic tool holder
901069 Latch repair kit
902190 Replacement E-Clip for hinge
901022 Alu floor nozzle, 31cm wide for Heavy Duty Dry Vac, Hepa + Chip Trapper, Easy Switch Vac
