Automatic hose reels of the Prevost brand stand for sophisticated technology and durable materials. We offer a comprehensive selection of modern reels for compressed air, which cover almost every need.
Prevost hose reels have the following advantages:
- Return spring: rolls the hose back in after use
- Anti-twist protection: prevents hose breakage and wear
- Safety quick coupling: with whip protection against compressed air shocks
- Special pull-in brake systems: depending on the model, additional safety through gentle rolling
- Practical snap-in: hose can be snapped in at any desired length
- Flexible mounting: Reels can be mounted in a convenient position on the wall or ceiling or can be operated as mobile units. Hose reels with closed drum are supplied with 180° swivelling mounting, others can be optionally upgraded.
- Supply hose: The hose reel is connected to the supply line via a supplied supply hose. Hose connection via a pre-assembled 360° swivel coupling.
- High quality housing: Robust steel and stainless steel housing for any environment.
Products

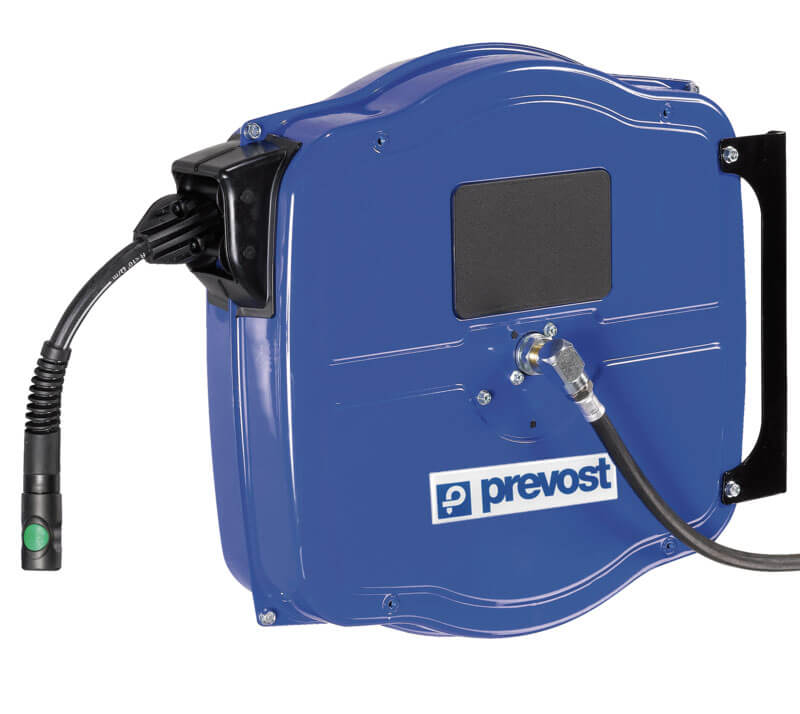

Hose reel for compressed air with oil, grease and water resistant hose, 10 – 20 m.
Model: Hose reel DGF 0810ES
Features:
- Housing made of hot-dip galvanized sectional steel with electrostatic painting of UV-resistant polyester powder
- Rubber hose, inner coating: NBR (rubber with neoprene), outer coating: CR – SBR (rubber with neoprene).
- Fixed bracket / 140° swivel bracket as option: DGF PIV
- Air supply: Connection via swivel coupling (360°) in the middle of the housing with 1 m long supply hose (included in delivery)
- Temperature: -15°C to +40°C
Outlet coupling:
Air outlet with quick coupling with 7.4 mm passage. Safety coupling prevo S1, ESI 07. European coupling profile 7.2 – 7.4
Hose reel for compressed air with extra resistant hose for the toughest operating conditions.
Model: Hose reel DGO 1025ES
Features:
- Housing made of hot-dip galvanized sectional steel with electrostatic painting of UV-resistant polyester powder
- Rubber hose, inner coating: NBR (rubber with neoprene), outer coating: CR – SBR (rubber with neoprene).
- Fixed bracket / 140° swivel bracket as option: DGF PIV
- Air supply: Connection via swivel coupling (360°) in the middle of the housing with 1 m long supply hose (included in delivery)
- Temperature: -15°C to +40°C
Outlet coupling:
Air outlet with quick coupling with 7.4 mm passage. Safety coupling prevo S1, ESI 07. European coupling profile 7.2 – 7.4.

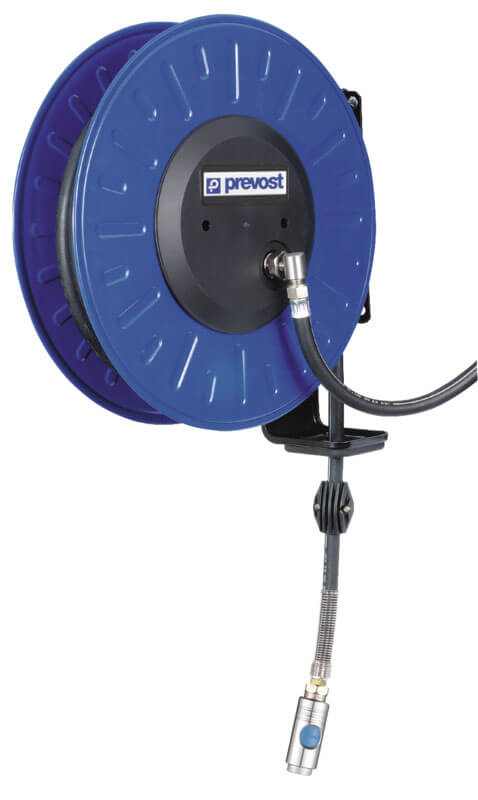

Hose reel for supplying tools with medium and high consumption and long hose lengths with air or water, 30 m rubber hose
Model: Hose reel DLO 1330 ES
Features:
- Housing made of hot-dip galvanized sectional steel with electrostatic painting of UV-resistant polyester powder
- Rubber hose
- Steel protection spring
- Fixed bracket / 140° swivel bracket as option no. DLO PIV
- Air supply: 1-m-long supply hose on rotating coupling (360°)
- Temperature: -15°C to +70°C
Outlet coupling:
Air outlet with safety quick coupling prevo S1 passage 10.4 mm. Coupling ESI 11, passage 10.4 mm, European coupling profile 10.4.
Hose reel for workshop work and mobile compressed air supply with flexible, abrasion-resistant 10 m hose made of polyurethane.
Model: Hose reel DMF 0810ES
Features:
- Housing made of hot-dip galvanized steel with electrostatic painting of UV-resistant polyester powder
- Hose of polyurethane with textile braid for reinforcement
- Pivoting bracket (180°) for mounting the reel on the wall or ceiling
- Air supply: Connection via swivel coupling (360°) in the middle of the housing with 1 m long supply hose (included in delivery)
- Temperature: -15°C to +40°C
Outlet coupling:
Air outlet with safety quick coupling. The model DMF ES is equipped with a safety quick coupling prevo S1 with whiplash protection (against air blast), so that the air tools can be connected and disconnected with one handle. European coupling profile 7.2 en kann. Europäisches Kupplungsprofil 7,2 – 7,4.
Grease, water and weather resistant hose reel for the toughest operating conditions, 10 – 20 m
Model: Hose reel DMO 0810ES
Features:
- Housing made of hot-dip galvanized sectional steel with electrostatic painting of UV-resistant polyester powder
- Rubber hose
- Steel protection spring for hose with diameter 13 x 20 mm.
- Fixed bracket / 140° swivel bracket as option no. DMO PIV2
- Air supply: Connection via rotating coupling (360°) in the middle of the housing with 1 m supply hose (included in delivery)
- Temperature: -15°C to +40°C
Outlet coupling:
Air outlet with quick coupling with 7.4 mm passage. Safety coupling prevo S1, ESI 07. European coupling profile 7.2 – 7.4.

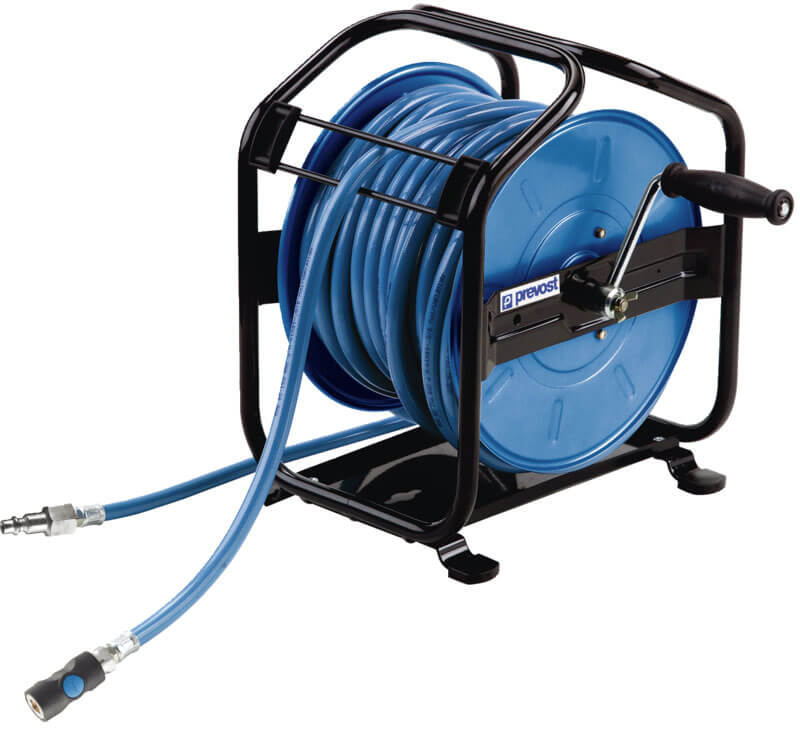

Mobile hose reel with quick coupling and 30 m hose
Model: Hose reel DMP 0830ES
Features:
- Housing and holder made of hot-dip galvanised steel, blue UV-resistant paint
- Polyurethane / thermoplastic hose with textile braid
- Air supply: 2 meter hose with nipple for quick coupling, European profile 7.2 – 7.4, ERP 07.
- Temperature: -4°C to +70°C
Outlet coupling:
Air outlet with quick coupling with 7.4 mm passage. Safety coupling prevo S1, ESI 07. European coupling profile 7.2 – 7.4.

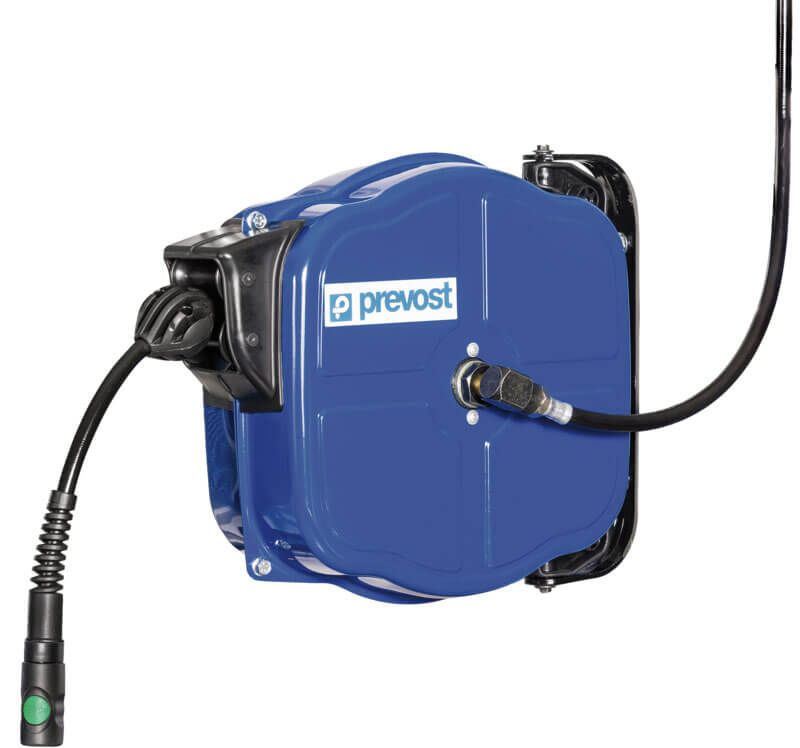

Industrial hose reel with antistatic polyurethane hose 12 m
Model: DPF 0812ES
Features:
- Housing made of hot-dip galvanized sectional steel with electrostatic painting of UV-resistant polyester powder
- Hose of polyurethane with textile braid for reinforcement
- Swivel mount (180°) Model for mobile mount: No. DPF SMOSR
- Air supply: Connection via rotating coupling (360°) in the middle of the housing with 1 m supply hose (included in delivery)
- Temperature: -15°C to +40°C
Outlet coupling:
Air outlet with quick coupling with 7.4 mm passage. Safety coupling prevo S1, ESI 07. European coupling profile 7.2 – 7.4.

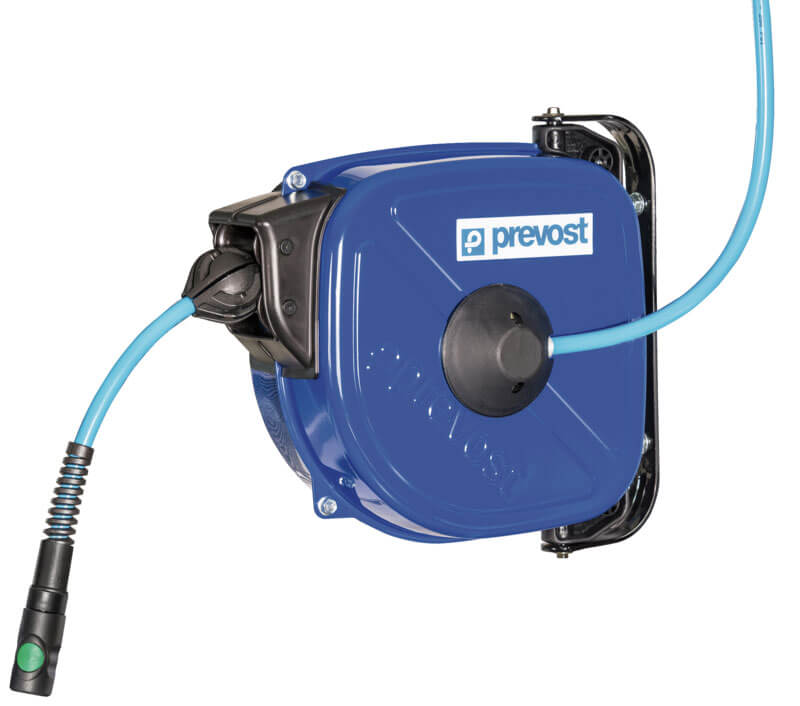

Hose reel 12- 15 m for the supply of mobile compressed air tools, blow guns or cleaning equipment.
Model: Hose reel DRF 0812ES
Features:
- Casing in hot-dip galvanised steel with electrostatic painting in UV-resistant polyester powder, spring in tempered steel
- PU/PVC hose
- Air supply: Connection via a 1 m long supply hose (included in delivery), protected by plastic cover.
- Swivel mount (180°) for mounting on wall or ceiling
- Temperature: -15°C to +65°C
Outlet coupling:
Air outlet with safety quick coupling. The DRF ES models are equipped with safety quick couplings prevo S1 with whip cut protection (against air blast), so that the air tools can be connected and disconnected with one handle. European coupling profile 7.2 – 7.4.

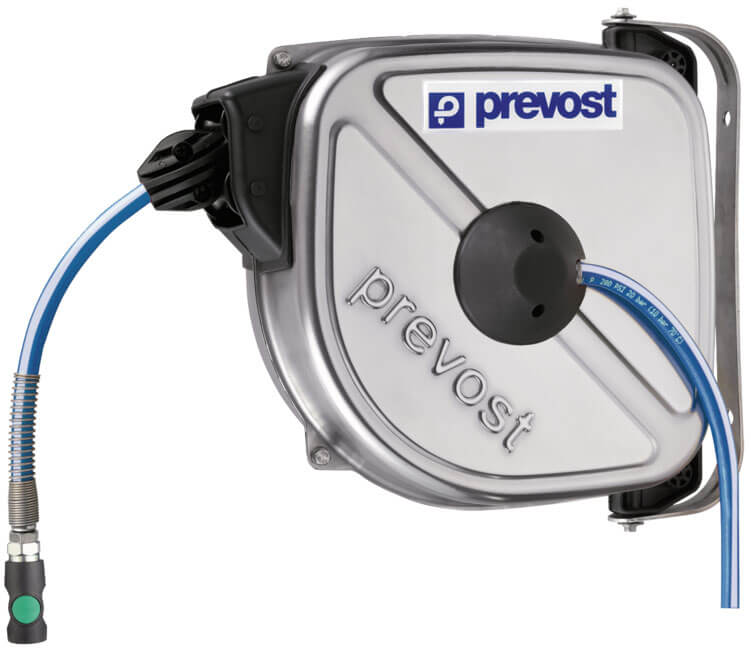

Hose reel with stainless steel housing for humid and corrosive environments, 12 m
Model: Hose reel DRFI 1012ESHE
Features:
- AISI 304 stainless steel casing; internal parts of the reel in contact with the medium are made of composite materialPU/PVC hose
- Air supply: Connection via a 1 m long supply hose (included in delivery), protected by plastic cover.
- Swivel mount (180°) for mounting on wall or ceiling
- Temperature: -15°C to +65°C
Outlet coupling:
Air outlet equipped with safety quick couplings prevo S1 with whiplash protection (against compressed air shock), so that the air tools can be coupled and uncoupled with one handle. European coupling profile 7.2 – 7.4. Medium: air
Hose reels for humid and corrosive environments, with controlled hose retraction
Model: Hose reel DRFINB 1012ESHE
Features:
- The hose reel DRFINB is equipped with a controlled hose retraction in the housing (yellow end position stopper)
- Body in AISI 304 stainless steel, internal parts in contact with the medium, in composite material
- Reels for use in humid and corrosive environments
- PU/PVC hose
- Air supply: Connection via a 1 m long supply hose (included in delivery), protected by plastic cover.
- Swivel mount (180°) for mounting on wall or ceiling
- Temperature: -15°C to +65°C
Outlet coupling:
Air outlet equipped with safety quick couplings prevo S1 with whiplash protection (against compressed air shock), so that the air tools can be coupled and uncoupled with one handle. European coupling profile 7.2 – 7.4. medium: air. Lock and sleeve in 316L stainless steel.

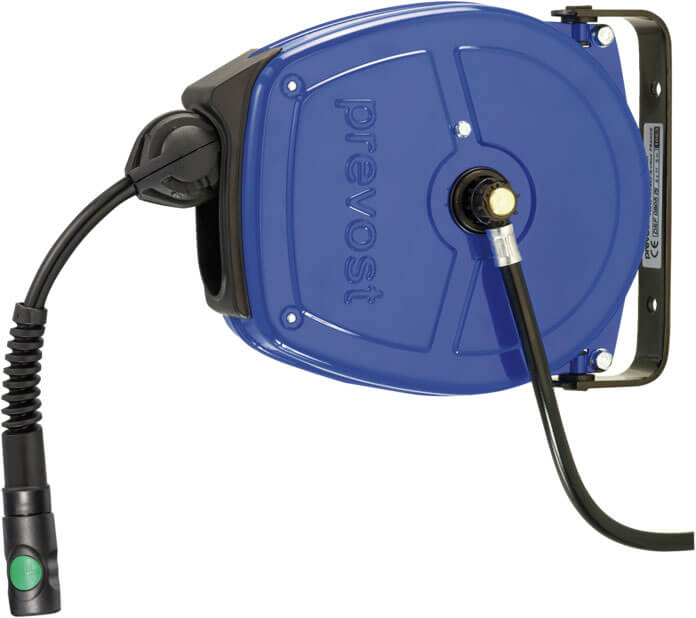

Compact, very lightweight hose reel for mobile compressed air supply
Model: Hose reel DSF 0805ES
Features:
- Housing made of hot-dip galvanized steel with electrostatic painting of UV-resistant polyester powder, Spring made of tempered steel
- Hose made of polyurethane with textile braiding
- Swivelling mounting bracket (180°), mounting of the reel on wall or ceiling possible
- Air supply: Connection via swivel coupling (360°) in the middle of the housing with 1 m long supply hose (included in delivery)
- Temperature: -15°C to +40°C
Outlet coupling:
Air outlet with safety quick coupling. The DSF ES models are equipped with safety quick couplings prevo S1 with whip cut protection (against air blast), so that the air tools can be connected and disconnected with one handle. European coupling profile 7.2 – 7.4.
Compact, lightweight hose reel for humid, corrosive environments
Model: Hose reel DSF 1003ES
Features:
- Body in AISI 304 stainless steel, internal parts in contact with the medium, in composite material
- Hose made of polyurethane with special textile braiding, heat and moisture resistant
- Swivel mount (180°), wall or ceiling mounting
- Air supply: Connection via swivel coupling (360°) in the middle of the housing with 1 m long supply hose (included in delivery)
- Temperature: -15°C to +70°C
Outlet coupling:
Air outlet equipped with safety quick couplings prevo S1 with whiplash protection (against compressed air shock), so that the air tools can be coupled and uncoupled with one handle. European coupling profile 7.2 – 7.4.
Hose reel for compressed air to supply compressed air tools at large workplaces, 25 m hose

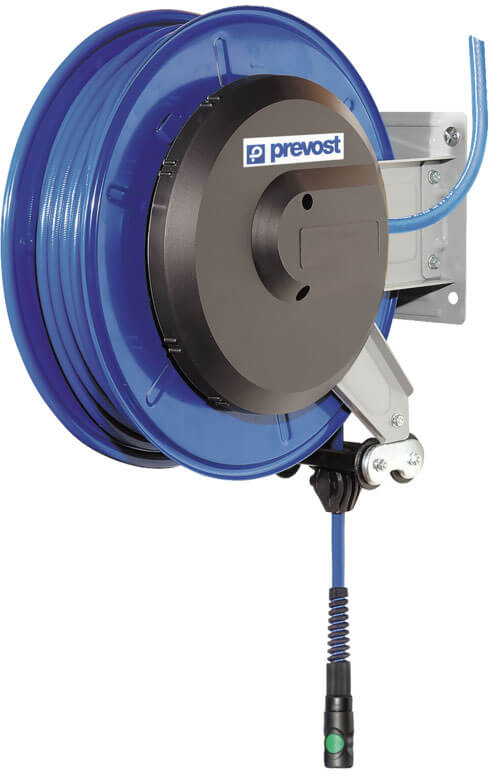

Model: Hose reel DVO 1025ES
Features:
- Housing made of hot-dip galvanized sectional steel with electrostatic painting of UV-resistant polyester powder
- Polyurethane hose reinforced with braiding
- Air outlet arm pivotable in 3 positions
- Fixed bracket, swivel device 140°, order no. DMO PIV2, as option
- Air supply: Connection via swivel coupling (360°) with 1 m long supply hose (included in delivery), protected by plastic cover.
- Max. Temperature: -15°C to +40°C
Outlet coupling:
Air outlet with quick coupling. Safety coupling prevo S1, ESI 07. European coupling profile 7.2 – 7.4.

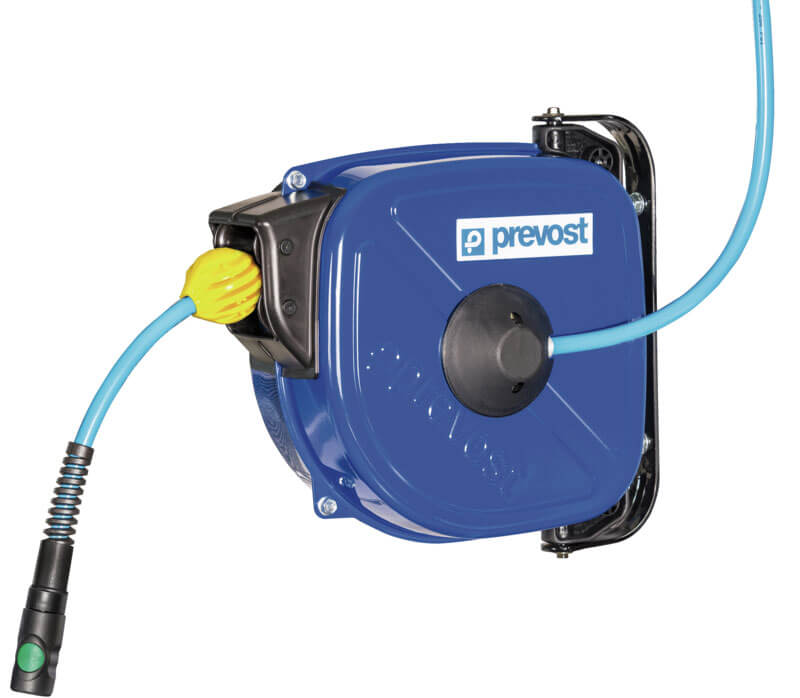

Hose reel 12-15 m with increased safety through braked hose retraction
Model: Hose reel DRFB 0812ES
Features:
- Casing in hot-dip galvanised steel with electrostatic painting in UV-resistant polyester powder, spring in tempered steel
- With PU/PVC hose
- Air supply: Connection via a 1 m long supply hose (included in delivery), protected by plastic cover.
- Reel with controlled hose retraction, recognizable by the yellow end position stopper
- Swivel mount (180°) for mounting on wall or ceiling
- Temperature: -15°C to +65°C
Outlet coupling:
Air outlet equipped with safety quick couplings prevo S1 with whiplash protection (against compressed air shock), so that the air tools can be coupled and uncoupled with one handle. European coupling profile 7.2 – 7.4.
