Depending on the type of use, our LED tube lights meet the hygiene requirements of common food standards. In addition to resistance to many acids and alkalis, they are also resistant to hydrogen peroxide (H2O2, max. 35%), which is used for cleaning or sterilization. For classic industrial applications, the luminaires meet IP67/IP69K protection ratings. For excellent heat dissipation and thus long service life, the LED tube lights are equipped with optimal thermal management. LED tube lights are available in 25 mm, 50 mm and 70 mm diameters. Certifications: HACCP certified and FDA compliant materials, Ecolab certification for INROLED_50 Ecolab.
Application areas: Machinery, production equipment & assembly lines, food & pharmaceutical industry, warehouse logistics & building services.
We would be happy to provide you with a quote, please contact us by phone or via our contact form.

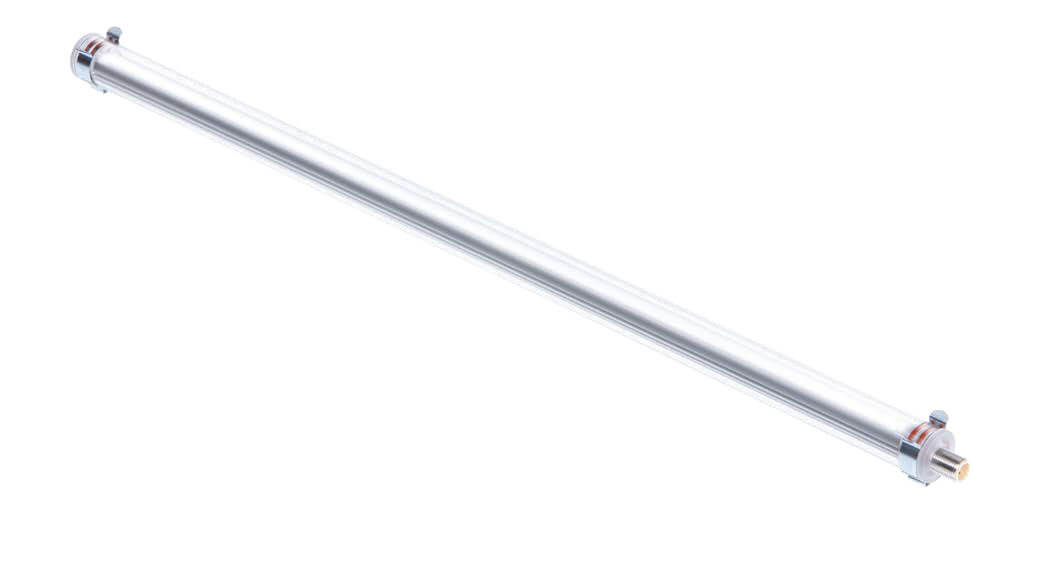

INROLED_25 LED Tube Light for High-Sensitive Areas
The lightweight INROLED_25 LED tube light was developed for hygiene-sensitive areas such as the food industry or the pharmaceutical industry, but is also used in other industrial areas. The slim LED tube luminaire meets the standards specified for food safety. FDA certification (Food and Drug Administration) is in preparation. The INROLED_25 has a diameter of only 25 mm and is very easy and quick to assemble.
Advantages:
- Flat and homogeneous light
- Flicker-free light without UV and IR components
- Suitable for F&B
- Can also be used at high ambient temperatures
- Resistant to hydrogen peroxide (H2O2, max. 35%), as well as acids and alkalis (is used in individual cases checked in advance)
- Very slim design and extremely light
- Luminaire can be freely positioned within the swivel range
- No dirt trapping edges
Areas of application:
- Food & Beverage
- Packaging industry
- Pharmaceutical industry
- Architecture and buildings
- Assembly line and Assembly lines
Features:
- High-performance LED chips for daylight white 5200-5700K
- Beam angle 100 ° and color rendering Ra> 85
- Housing: Protective tube made of 2 mm shatterproof, opal white polycarbonate with sealed end caps
- Aluminum base body r for optimal thermal management
- Hardly any heating, residual heat dissipation through the rib profile of the base body
- Tube luminaire geometry Ø25 mm in 3 standardized lengths 348 mm, 552 mm, 952 mm
- Connection voltage 24V DC via M12 connector
- FDA-compliant materials; M12 connectors made of stainless steel (F&B suitable) encapsulated in the housing
- Fastening via spring clips for assembly and quick change or separately available accessories
- CE and ETL listed test seals
- Maintenance-free, 36 months warranty
- Made in Germany
Degree of protection IP69K and service life> 60,000h (L80 / B10)
INROLED_50_Ecolab Dirt-Repellant
The INROLED_50 ECOLAB tubular LED luminaire is a powerful, robust tubular luminaire with a diameter of 50 mm, a high degree of protection and a dirt-repellent Ecolab coating. With its dirt-repellent coating, the LED luminaire is particularly suitable for hygiene-sensitive areas in the food and beverage industry, but also in the pharmaceutical industry or for packaging production. The user has two connection variants to choose from.
Advantages:
- Wide-beam, flicker-free light without UV and IR components
- Frosted protective tube made of polycarbonate, fully illuminated
- Very high degree of protection (IP67 / IP69K)
- Can also be used at high ambient temperatures
- Permanent Ecolab coating against the adhesion of dirt
- Luminaire can be freely positioned within the swivel range
- Connection variant with 220-240V AC or via 24V DC system voltage
- Resistant to hydrogen peroxide (H2O2, Max. 35%) and acids and lyes (preliminary check in individual cases)
- HACCP and Ecolab certified
Areas of application:
- Food & Beverage
- Systems in the packaging industry
- Pharmaceutical industry
- Architecture and buildings
- Assembly and assembly lines
Features:
- High-performance LED chips for daylight white 5200-5700K
- Beam angle 10 0 ° and color rendering Ra> 85
- FDA-compliant materials; M12 connector made of stainless steel (F&B suitable), each encapsulated in the housing
- Housing: Protective tube made of shatterproof, opal white polycarbonate with sealed end caps
- Protective tube completely Ecolab coated
- Aluminum Base body inside for optimal thermal management
- Hardly any warming, residual heat dissipation through the rib profile of the base body
- Tube light geometry Ø50 mm in 3 standardized lengths
- Tested impact resistance IK09
- High light output and lamp luminous flux of up to 131 lm / W, depending on the version
- Reflector inside for even light distribution and light intensity compensation
- Very high degree of protection IP67 / IP69K and long service life of the LED lamps
- DC version: connection voltage 24V DC via M12 plug connection A-coded and ETL listed
- Version AC: connection voltage 220-240V AC via M12 plug connection S-coded
- Fastening via the supplied, F + B-compatible holder made of metal-detectable PP or via optional accessories
- Maintenance-free, 36 months warranty
- Made in Germany

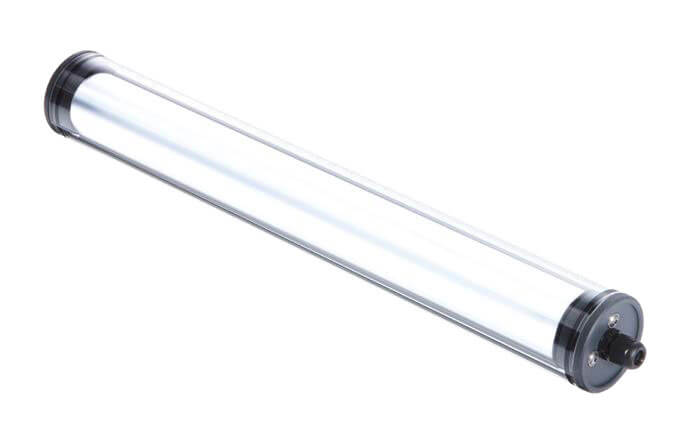

LED Tube Luminaire INROLED_70
Cascadable LED tube luminaire INROLED_70 – Cost-optimized 70 mm tube luminaire with high light output and protection class IP67 / IP69K. Versatile use thanks to the optional protective tube made of borosilicate glass (safety glass) and electrical linkability. There is also a choice of connection voltages of 24V DC and 220-240V AC.
Advantages:
- High light output; Flicker-free light without UV and IR components; Flat and homogeneous light
- Optimal glare control and light scattering thanks to microprismatic cover
- Variant safety glass: 4 mm thick borosilicate glass protects the electronics from water, dust and moisture
- Variant Polycarbonate: an opal white, shatterproof plastic tube guarantees the necessary safety and provides pleasant light
- High degree of protection (IP67 / IP69K)
- Easy conversion and retrofitting
- Let lights electrically interlinked
- Universally applicable 70 mm tubular luminaire
Areas of application:
- Machines and technical systems
- House technology
- Underground garages
- Architecture
Features:
- High-performance LED chips for daylight white 5200-5700K
- Universal beam angle 125 ° and color rendering Ra> 85
- Glare control: microprism cover directly via LED chips or opal white cover
- Protective tube housing: depending on the variant, housing made of borosilicate glass as, 4 mm thick or shatterproof protective tube made of polycarbonate
- Hardly any heating, residual heat dissipation through the ribbed profile of the base body
- Very high degree of protection IP67 / IP69K and service life> 60,000h (L80 / B10)
- Connection voltage, depending on the variant, 24V DC or 220-240V AC
- Cable entry via cable gland (Wago terminal inside)
- All variants can be linked electrically (cascadable )
- INROLED_70 PC has an impact resistance IK08
- Fastening using standard Ø70 fastenings or optional fastening accessories
- CE-compliant and ETL listed test seal, the latter for the 24V variant in borosilicate glass
- Maintenance-free, 36 months warranty
- Made in Germany
