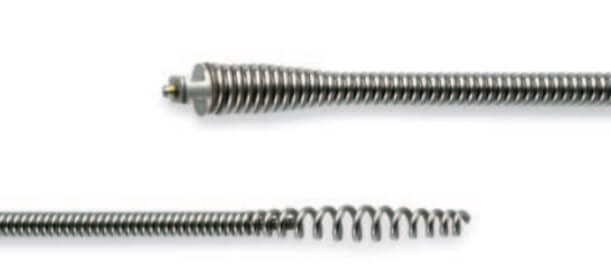

Adapter spiral various versions 6,4 – 10 mm, up to 10 m length
Adapter spirals made of special steel with integrated club head. Adapter spirals are particularly suitable for use in narrow pipe bends for light cleaning work. The spirals are available with and without reinforced inner core and can be used in the Hand-rak and Motor-Hand-rak models.
Adapter spiral: Technical details

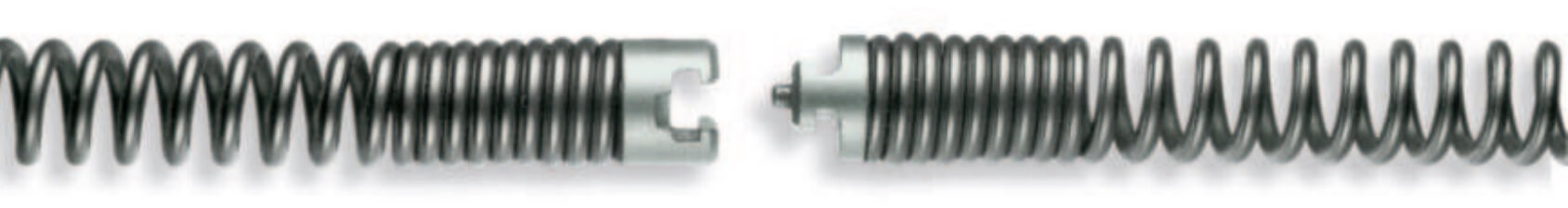

Standard spiral 16 – 32 mm, up to 4.5 m, with groove-pin coupling
Standard pipe cleaning spiral made of quality steel with groove-pin coupling. It is flexible for pipe cleaning work with normal stress. The standard spiral works perfectly at short distances and in narrow or several successive pipe bends. With its particularly abrasion-resistant surface, it is suitable for continuous use even under the toughest conditions. Available in different versions with optional 16, 22 or 32 mm coupling and lengths up to 4.5 m. Optionally available with ASF coupling: The replaceable spring allows quick repair of couplings without having to turn the entire coupling out of the spiral.

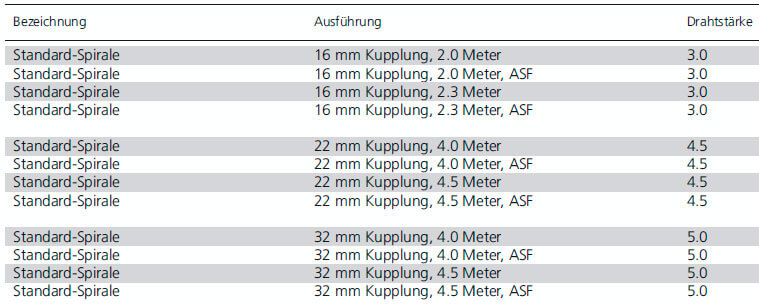

Standard pipe cleaning spiral: Technical details

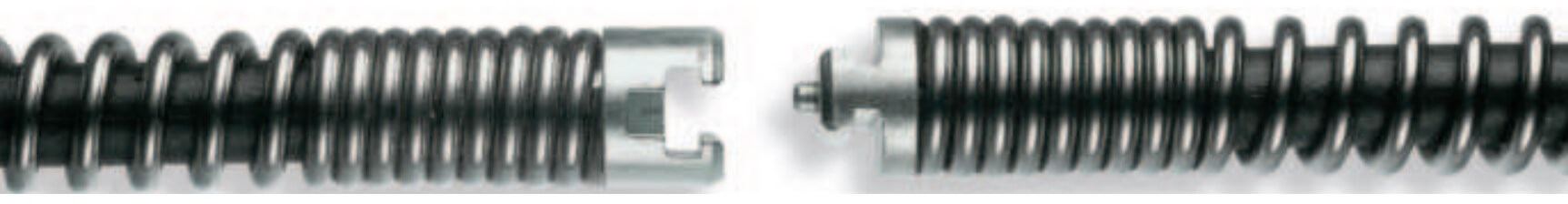

Spiral with core 16 – 32 mm, up to 4,5 m length
Spiral with core in versions from 16 – 32 mm groove-pin coupling, lengths up to 4.5 m. Suitable for use in very dirty areas. The temperature and weather resistant plastic core almost completely prevents the spiral from clogging with dirt or residues. Optionally available with ASF coupling: The replaceable spring allows quick repair of couplings without having to turn the entire coupling out of the spiral.

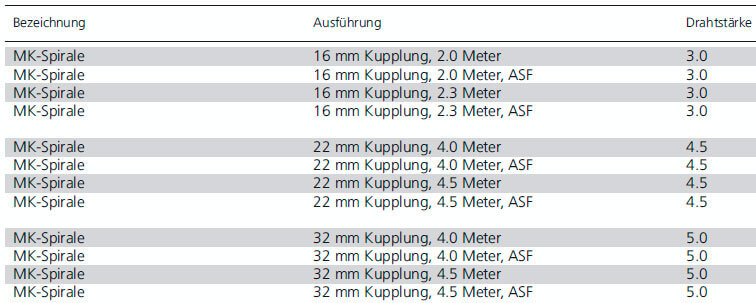

Spiral with core: Technical details
Hardened pipe cleaning spiral 16 – 32 mm, up to 4.5 m
Extra hardened pipe cleaning spirals with 16, 22 and 32 mm coupling and larger wire diameter. Hardened spirals have a higher stability and torque transmission, making them suitable for heavier tools. Optionally available with ASF coupling: The replaceable spring allows quick repair of couplings without having to turn the entire coupling out of the spiral.

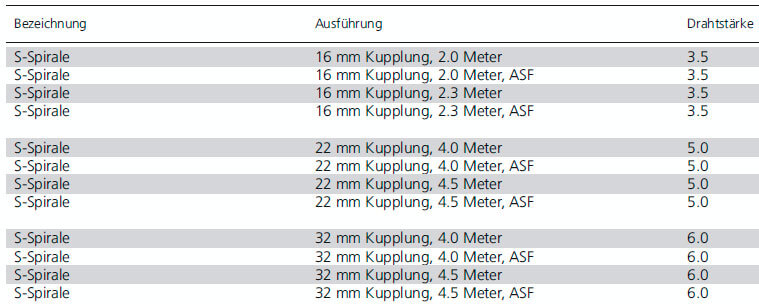

Hardened pipe cleaning spiral: Technical details

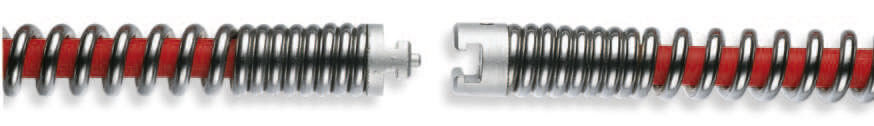

Hardened spiral with core 16 – 32 mm, up to 4,5 m
Hardened spirals with core for use in heavily soiled areas. Different versions with groove-pin coupling 16, 22 and 32 mm available. The weather-resistant plastic core prevents the spiral from clogging by dirt or residues in case of textile or cell blockages. Optionally available with ASF coupling: The replaceable spring allows quick repair of couplings without having to turn the entire coupling out of the spiral.

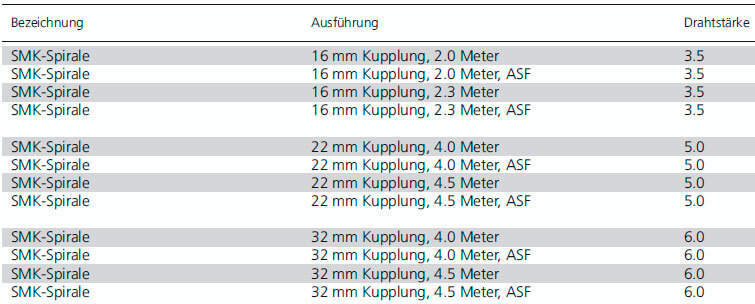

Hardened spiral with core: Technical details
Reducing spiral, length 140 – 195 mm
By using reducing spirals, it is possible to use spirals of a certain size together with tools of other types. These reducing spirals are made of a very high quality spring steel. Reduction spirals are available in the versions 22 to 16 mm (length 140 mm) and 32 to 22 mm (length 195 mm).

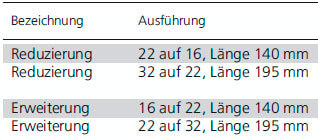

Reducing spiral: Technical details
Extension spiral, length 140 – 195 mm
By using extension spirals it is possible to use spirals of a certain size together with tools of other types. These extension spirals are made of a very high quality spring steel. Extension spirals are available in the versions 16 to 22 mm (length 140 mm) and 22 to 32 mm (length 195 mm).
Extension spiral: Technical details

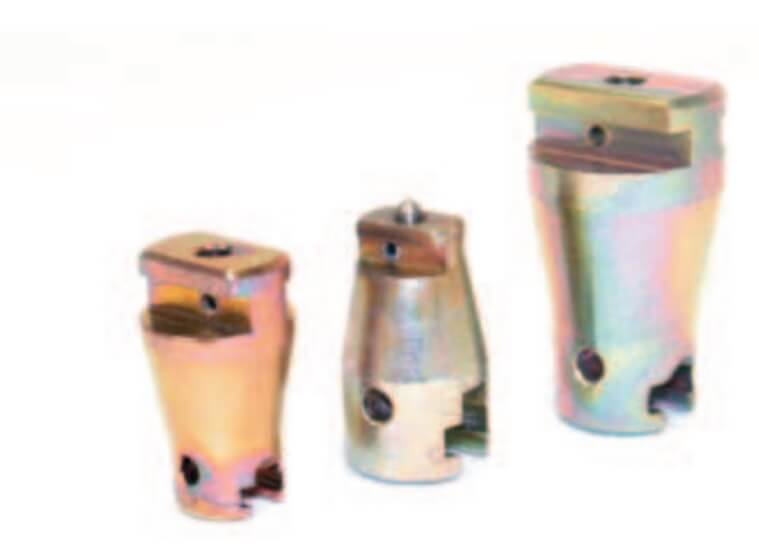

Reduction piece (solid) 22 to 16 mm or 32 to 22 mm
By means of reduction and extension pieces, spirals of different sizes can be combined with each other, so that, for example, tools of different holders can be used. Reducers are available from 22 to 16 mm and from 32 to 22 mm.
Reduction piece: Technical details
Extension piece (solid) 16 to 22 mm or 22 to 32 mm
By means of reduction and extension pieces, spirals of different sizes can be combined with each other, so that, for example, tools of different holders can be used. Extension pieces from 16 to 22 mm and from 22 to 32 mm are available.
Extension piece: Technical details
Combination spiral 16 – 22 – 32 mm
Combination spirals in various designs: 16 mm, 22 mm with length 190 mm or 32 mm with length 195 mm.

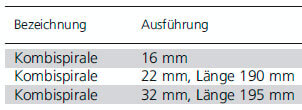

Combination spiral: Technical details

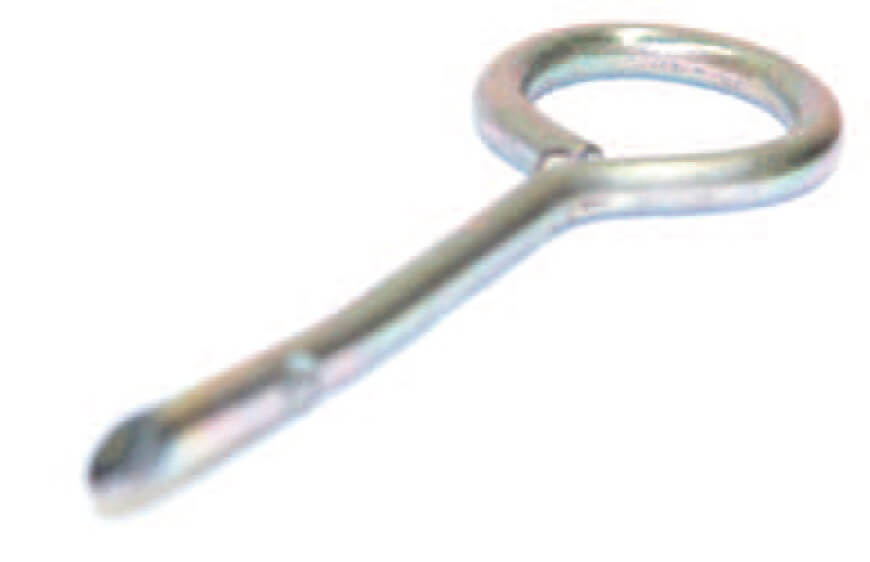

Separating key for spirals 16 – 22 – 32 mm
Safety disconnect spanner for disconnecting spirals and tools, for 16 mm and 22/32 mm spirals. Spiral accessories to avoid stabbing injuries.
Separating key: Technical details

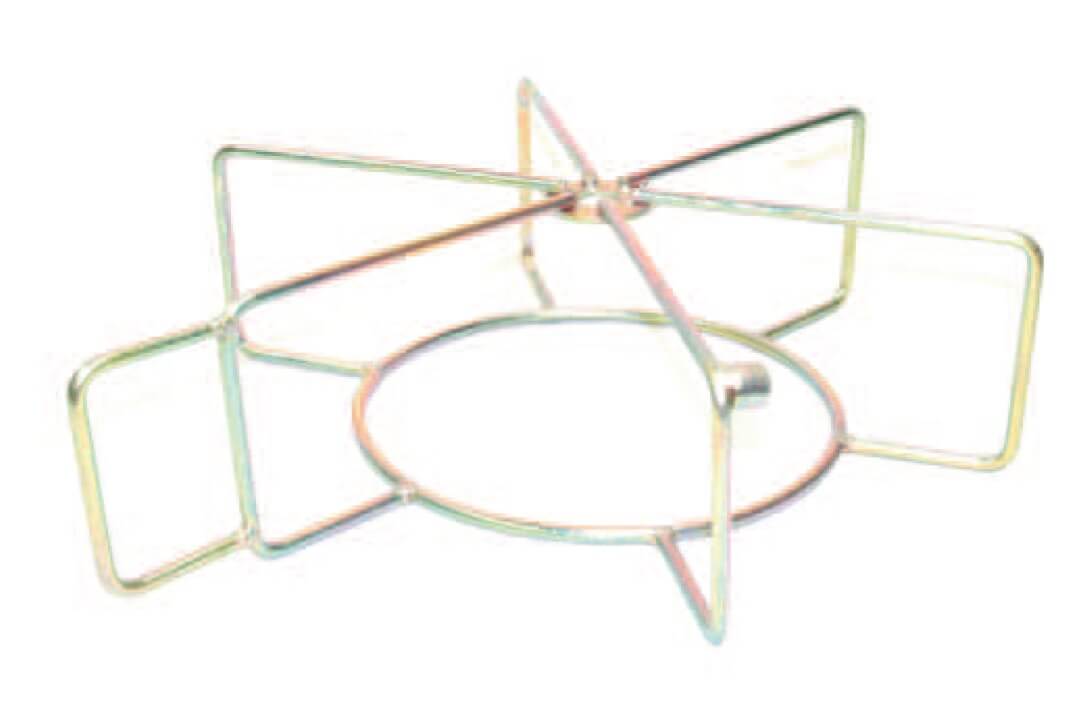

Spiral basket for 16 – 22 – 32 mm pipe cleaning spirals
Spiral basket for storing pipe cleaning spirals from 16 – 32 mm. Rustproof baskets made of galvanised steel.

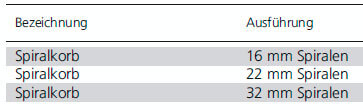

Spiral basket: Technical details
