Sanitary Flange Line Vac™ – Convey materials, parts, waste – with easy disassembly and cleanup!
What Is The Sanitary Flange Line Vac?
EXAIR’s Sanitary Flange Line Vac is the best way to convey materials in systems which require frequent or mandatory cleaning. The Sanitory Flange Line Vac fits within your current sanitary flange piping system and converts it into a conveyer for waste, parts and bulk materials.
Why The Sanitary Flange Line Vac?

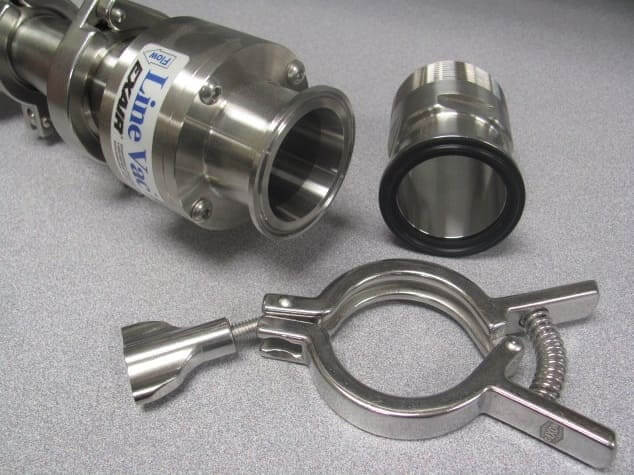

When your piping system requires sanitary flanges, which make it easyto dismantle and clean its components, the Sanitary Flange Line Vac will suit your needs. They are made from Type 316SS to provide superior corrosion resistance and cleanliness. These flanged Line Vacs limit entrapment areas where bacteria can grow and the clamp style sanitary flanges are compatible with ISO 2852.
Sanitary Flange Line Vacs are designed with the same performance characterisitcs of EXAIR’s standard and Threaded Line Vacs which makes them a versatile solution for your conveying needs. Conveying rates are easy to control by regulating the compressed air supply pressure.
The Sanitary Flange Line Vacs are available from stock in four common flange sizes, 1-1/2″ (38mm), 2″ (51mm), 2-1/2″ (53.5mm) and 3″ (38mm). All metal parts are made from 316SS. No moving parts or electricity assures maintenance free operation.
| 80 PSIG (5.5 BAR) | Size | Air Consumption | Vacuum | |||
|---|---|---|---|---|---|---|
| Model | in | mm | SCFM | SLPM | “H2O | kPa |
| 161150-316 | 1.5 | 38 | 33 | 934 | -36.8 | -9 |
| 161200-316 | 2 | 51 | 45 | 1,274 | -28.5 | -7 |
| 161250-316 | 2.5 | 53.5 | 58.5 | 1,274 | -23.5 | -6 |
| 161300-316 | 3 | 76.2 | 68.5 | 1,939 | -14.7 | -4 |
Horizontal conveying tested at 80 PSIG (5.5 BAR)

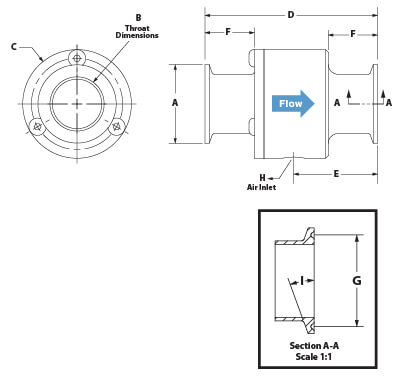

| Model | UOM | A | B | C | D | E | F | G | H (air inlet) | I |
|---|---|---|---|---|---|---|---|---|---|---|
| 161150-316 | in | 2 | 1.25 | 2.31 | 4.38 | 2.13 | 1.25 | 1.32 | 1/4″ NPT | 20° |
| mm | 51 | 32 | 59 | 111 | 54 | 32 | 43 | |||
| 161200-316 | in | 2.52 | 1.75 | 3.25 | 4.38 | 2.13 | 1.25 | 2.22 | 3/8″ NPT | 20° |
| mm | 64 | 44 | 83 | 111 | 54 | 32 | 56 | |||
| 161250-316 | in | 3.05 | 2.25 | 3.75 | 4.38 | 2.13 | 1.25 | 2.78 | 3/8″ NPT | 20° |
| mm | 77 | 57 | 95 | 111 | 54 | 32 | 71 | |||
| 161300-316 | in | 3.56 | 2.75 | 4.25 | 5.63 | 2.75 | 1.75 | 3.28 | 1/2″ NPT | 21.3° |
| mm | 90 | 70 | 108 | 143 | 70 | 44 | 83 |
| Model | Description |
| 6850 | Drum Cover for 30 or 55 Gallon Drums |
| 9001 | Auto Drain Filter Separator, 3/8 NPT, 65 SCFM (1841 SLPM) |
| 9032 | Auto Drain Filter Separator, 1/2 NPT, 90 SCFM (2549 SLPM) |
| 9002 | Auto Drain Filter Separator, 3/4 NPT, 220 SCFM (6230 SLPM) |
| 9005 | Oil Removal Filter, 3/8 NPT, 15-37 SCFM (425-1048 SLPM) |
| 9006 | Oil Removal Filter, 3/4 NPT, 150 SCFM (4248 SLPM) |
| 9008 | Pressure Regulator, 1/4 NPT, 50 SCFM (1416 SLPM) |
| 9033 | Pressure Regulator, 1/2 NPT, 100 SCFM (2832 SLPM) |
| 9009 | Pressure Regulator, 1/4 NPT, 220 SCFM (6230 SLPM) |
